Closures are essential in global packaging procurement. For products like premium personal care, cosmetics, and specialty liquids, the right dispensing cap can impact your brand’s reputation, user experience, and shipping safety. Aluminum disc top caps offer both a high-end look and dependable performance.
But to buy in large quantities successfully, you need to look at the engineering details, not just how the cap looks.
This guide covers the main structure, standard specs, and key features of aluminum disc top caps to help you make informed sourcing choices.

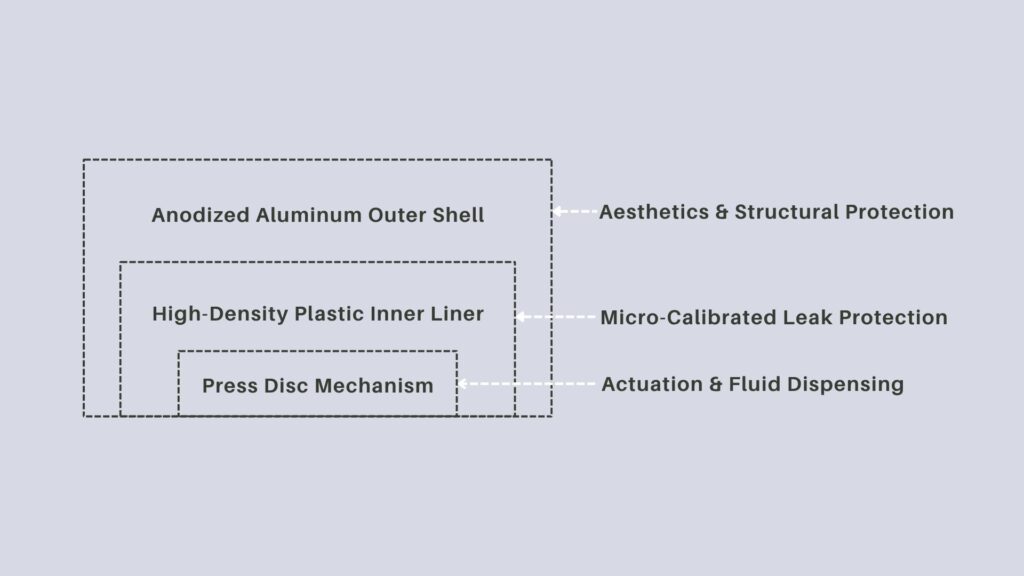

1. The Multi-Layered Anatomy: Shell vs. Core
A quality aluminum disc top cap uses both metal and plastic engineering. It has two main parts: a strong metal shell on the outside and a working plastic core inside.
The Outer Armor: Anodized Aluminum Shell
The outer shell is made from high-quality aluminum shaped by deep-drawing and stamping. Industrial caps are anodized, which means the finish is bonded to the aluminum through an electrochemical process. This provides:
- Exceptional corrosion resistance against aggressive chemical formulas.
- A premium, metallic tactile feel that plastic alternatives cannot replicate.
- A shielded barrier that prevents scuffing during bulk handling and automated capping-line sorting.
2. The Internal Engine: Plastic Inner Liner & Press Disc
While the metal shell offers a premium appearancThe metal shell gives the cap its premium look, but the plastic core handles how it works. Inside, there’s a high-density plastic liner and a press disc that pivots. When you press the top, the disc tilts and opens the cap for dispensing.410 Specification
Standard sizes help avoid problems in mass production. Although you can get custom sizes, the 24-410 finish is the worldwide standard for aluminum disc top caps.
Decoding “24-410”
These numbers come from standard packaging rules, like the GPI or SPI neck finish standards:
- “24” (MM): Denotes the nominal outer diameter of the bottle’s neck threads (in millimeters).
- “410” means a certain thread style and height. A 410 finish has about one and a half turns, which helps with fast capping and sealing. Even small mistakes can stop production lines. Make sure your supplier uses precise CAD measurements, and that thread pitch, T-dimension, and E-dimension match your bottle supplier exactly.
3. Evaluating Functional Attributes: Damping and Rebound Life
A cap’s look doesn’t matter if it doesn’t work well. When testing samples, engineers should check two things: how the cap opens and closes, and how long it lasts through repeated use.
Actuation Force & Damping Control
“Damping” means how much resistance you feel when you press the cap to open or close it.
- Too Low: The cap opens easily, risking accidental discharge during shipping or in a consumer’s travel bag.
- Too High: The consumer struggles to dispense the product, damaging the user experience.
Top manufacturers fine-tune the fit between the disc and the housing to get the right amount of force, measured in Newtons. The cap should move smoothly and give a clear “click” when closed.
Rebound Life and Cycle Testing
The pivot needs to last through many uses without leaking or wearing out. Good polymer cores won’t crack or change shape, so the press disc always returns to a flat position. When checking suppliers, make sure their labs test the caps for more cycles than the product’s expected life.

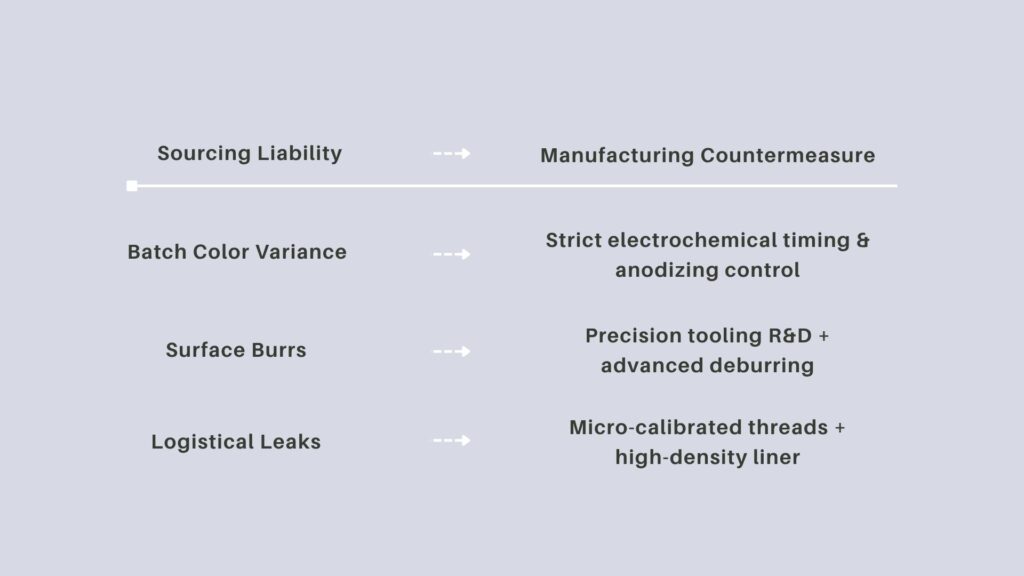

4. Mitigating Sourcing Liabilities: Color Variance, Burrs, and Sealing
When buying in bulk, common problems include color differences between batches and rough edges on the caps.
Eliminating Cosmetic Defects
To keep caps looking the same in big orders, top manufacturers control mold lines during design to avoid problems before making the caps. They also smooth out each cap so there are no sharp edges or visible lines.
Engineering for Global Logistics
ClosurCaps are tested during international shipping, where shaking and pressure changes can show if there are any design flaws.rotect your bottom line against costly leakage claims, select caps with an internal dual-locking system: designed to grip the bottle neck uniformly without loosening under continuous vibration.
- Micro-Calibrated Threads: Engineered to grip the bottle neck uniformly without loosening under continuous vibration.
- High-density liners are tough white plastic pieces that press tightly against the bottle neck, creating an airtight seal that holds up even in tough shipping conditions.
In Closing: Sourcing with Technical Certainty
To choose the right aluminum disc top cap, you need to know how it’s built and how it performs. Focus on precise design, good damping, and strong locking systems to get packaging that protects your brand and stands up to global shipping.
